RC Car Controlled / Simulated / Flashing Light System

RC Car Controlled / Simulated / Flashing Light System

  • 6 kinds of flashing modes (such as flashing, breathing lamp, Cruise lamp and always bright lamp)
  • 8 available light set interfaces
详细信息

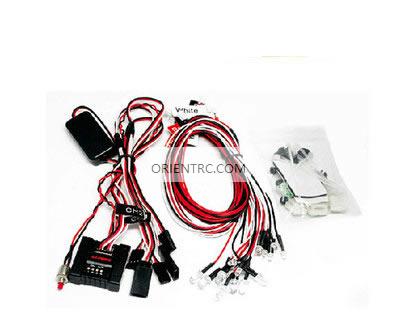

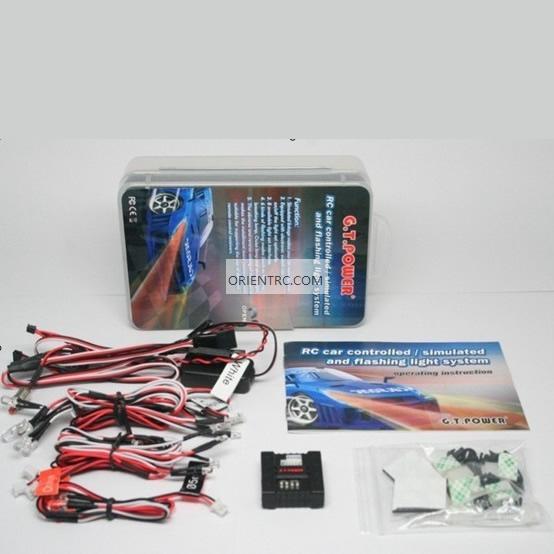

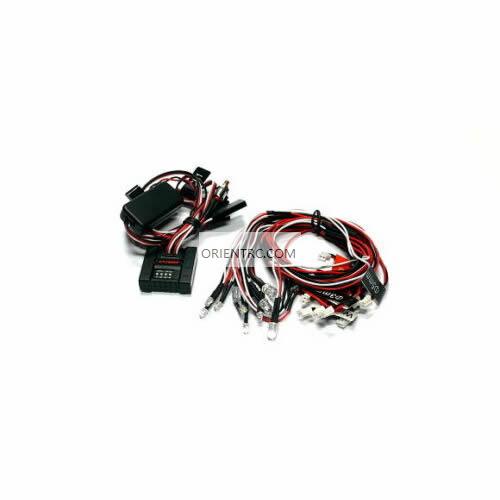

RC Car Controlled / Simulated / Flashing Light System


Feature:

Simulated linkage makes your car more dynamic
Equipped with electronic switch can turn on/off the light set optionally
8 available light set interfaces
6 kinds of flashing modes (such as flashing, breathing lamp, Cruise lamp and always bright lamp)
The obverse and reverse setting of the channel makes the installment more convenient, and suitable for supporting the use of different remote control receivers

Specifications:
Input Voltage: 4.8V - 6.0V
Working Current: 100mA
Light Cables` Length: Yellow 3    55cm   x2
White  5    37cm   x3
Red    5    37cm   x1
White  3    55cm   x1
Yellow 3    37cm   x1
Connection Cable Length: 38cm
Y Cable Legth: 30cm
Dimension: 30 x 30 x 10mm
Weight: 50g

Main Controller Box
Socket 1: Backward Light
Socket 2: Brake Light
Socket 3: Head Light
Socket 4: Brake Light
Socket 5: Left Signal Light
Socket 6: Front Lower Light
Socket 7: Head Light
Socket 8: Right Signal Light
Socket A: Connection Cable

Socket B: Cable
