48p 48dp Diamond Red 13t-41t 3.175mm Motor Pinion Gear

48p 48dp Diamond Red 13t-41t 3.175mm Motor Pinion Gear

  • For motor shaft diameter: 3.175mm
  • Material:stainless steel
  • Gear Tooth: 13T-35T
  • 1-10 RC CAR 13t-35t racing super hard gear
BASIC INFO
Features:
Made of high quality metal material
Exquisite workmanship and durable in use
48P motor gears for 1/10 RC Crawler Car

Specifications:
Material: Metal
Quantity: 1Pcs

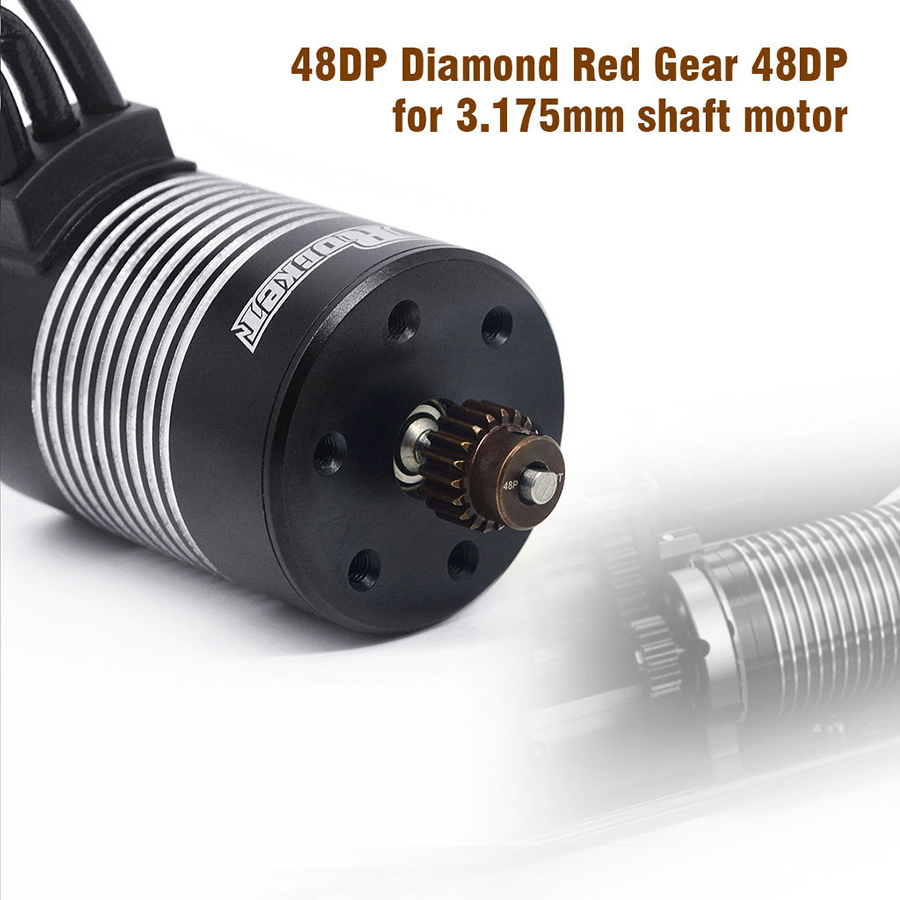

For motor shaft diameter: 3.175mm
Gear Tooth: 13T/14T/15T/16T/17T/18T/19T/20T/21T/22T/23T/24T/25T/26T/27T/28T/29T/30T/31T/32T/33T/34T/35T/

Package List:

1 * 48P Motor Gear    or  10* 48P Motor Gear


1-10 RC CAR 13t-35t racing super hard gear



Item T Spec
11025-3001-03 13T 13T ¢3.175*¢7.95*9mm
11025-3002-03 14T 14T ¢3.175*¢8.48*9mm
11025-3003-03 15T 15T ¢3.175*¢9.01*9mm
11025-3004-03 16T 16T ¢3.175*¢9.54*9mm
11025-3005-03 17T 17T ¢3.175*¢10.07*9mm
11025-3006-03 18T 18T ¢3.175*¢10.6*9mm
11025-3007-03 19T 19T ¢3.175*¢11.13*9mm
11025-3008-03 20T 20T ¢3.175*¢11.66*9mm
11025-3009-03 21T 21T ¢3.175*¢12.19*9mm
11025-3010-03 22T 22T ¢3.175*¢12.72*9mm
11025-3011-03 23T 23T ¢3.175*¢13.25*9mm
11025-3012-03 24T 24T ¢3.175*¢13.78*9mm
11025-3013-03 25T 25T ¢3.175*¢14.31*9mm
11025-3014-03 26T 26T ¢3.175*¢14.84*9mm
11025-3015-03 27T 27T ¢3.175*¢15.37*9mm
11025-3016-03 28T 28T ¢3.175*¢15.9*9mm
11025-3017-03 29T 29T ¢3.175*¢16.43*9mm
11025-3018-03 30T 30T ¢3.175*¢16.96*9mm
11025-3019-03 31T 31T ¢3.175*¢17.49*9mm
11025-3020-03 32T 32T ¢3.175*¢18.02*9mm
11025-3021-03 33T 33T ¢3.175*¢18.55*9mm
11025-3022-03 34T 34T ¢3.175*¢19.08*9mm
11025-3023-03 35T 35T ¢3.175*¢19.61*9mm
